How can the pump type be set for the visualization symbol?

 Answer

Two types of pumps can be displayed in a visualization, standard pump or a frequency controlled pump. This article describes how this type can be set (available from version 9).

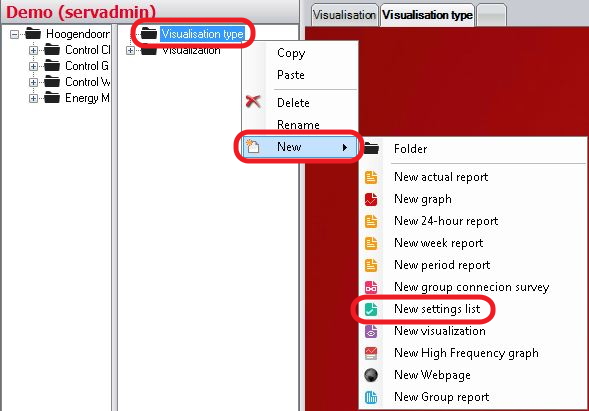

1.      Right-click in the user field, click on 'New' and then choose 'New settings list'.


2.      Name the new settings list 'pump type'

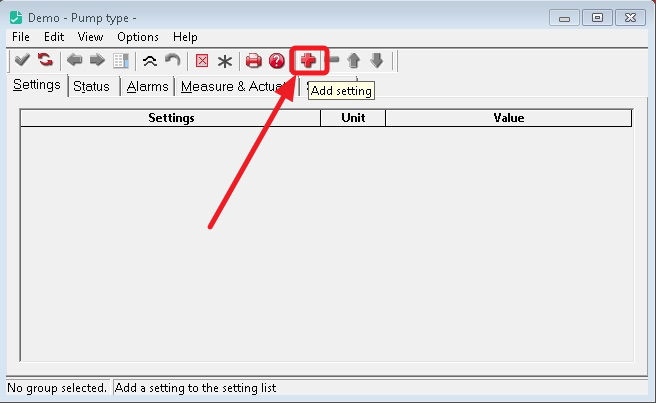

3.      Click on '+' to find the correct setting.

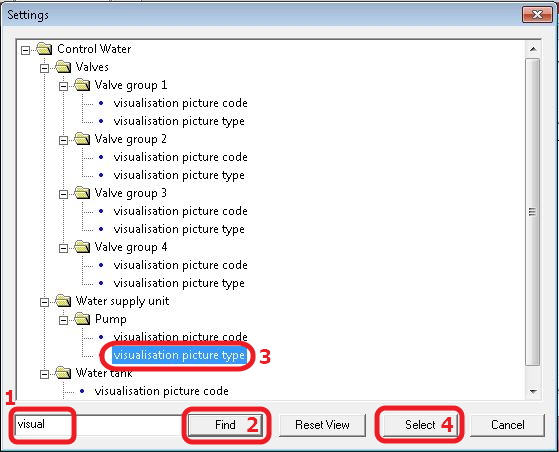

4.      Enter 'Visual' in the search field and click on 'Find'. Select 'Visualization picture type' and click on 'Select'.

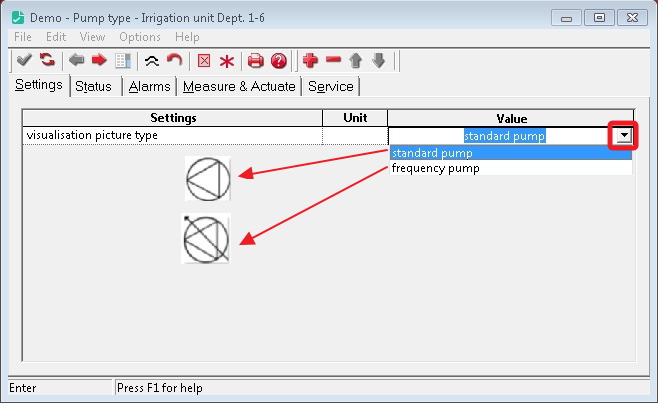

5.      Open the selection list and select the desired type.
