Question

How to close the vents before opening the screens to avoid cold fall?

 Answer

Example 1

The screen is closed during the night as energy screen.

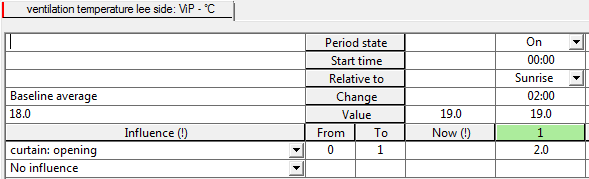

The ventilation temperature can be increased as soon as the curtain is opening. This is done via the influence "curtain: opening (0=no, 1=yes)"
Remark: the influence "curtain: opening (0=no, 1=yes)" is new in software version 10.

Example 2

The screen is closed during the night as energy screen.
The RH setpoint is for example 80%.

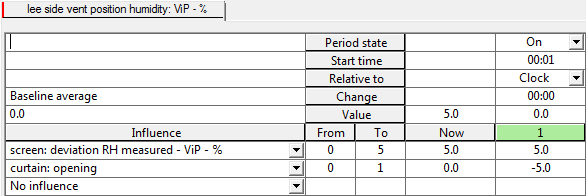

The priority for RH control is for example:
- from 80% to 85% open the vents for 5%
- from 85% to 90% open the screen for 3%



The vents are closed as soon as the curtain is opening. This is done via the influence "curtain: opening (0=no, 1=yes)"
Remark: the influence "curtain: opening (0=no, 1=yes)" is new in software version 10.

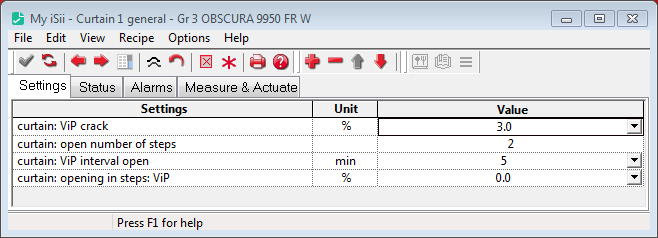

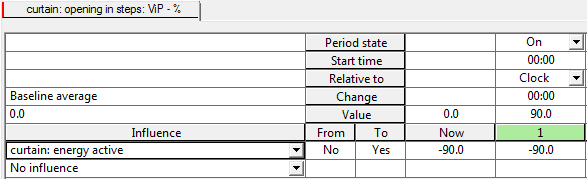

The energy screen opens in 2 steps. The first step is 0%. This is done via the influence "curtain: energy active"
Wait 5 minutes (interval time) after the first step. During this time the vents can close.



After the first step the screen is opened 90%. to dry the screen.
The last step opens the screen totally.
