Question

How to export graph data?



 Answer

Export graph data is possible from software version 5.

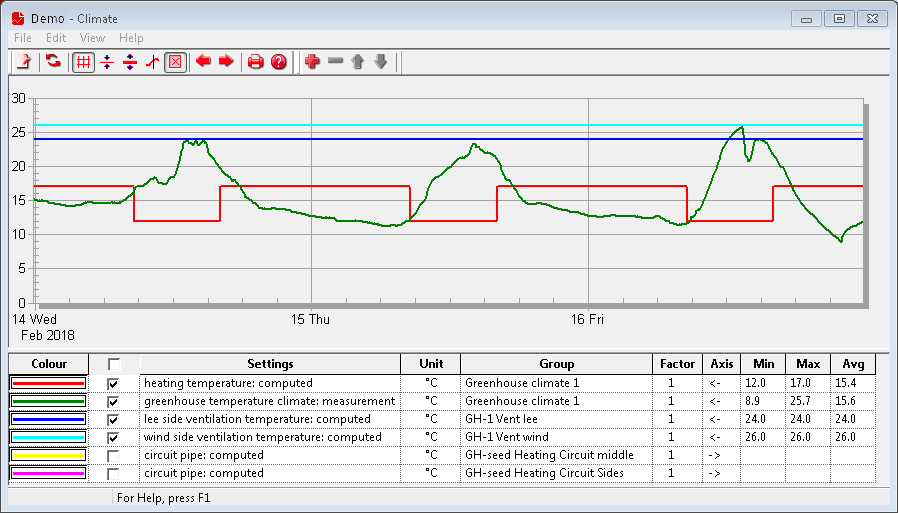

For example you want to export the data of the graph above over the last year.
  1. Click the property button

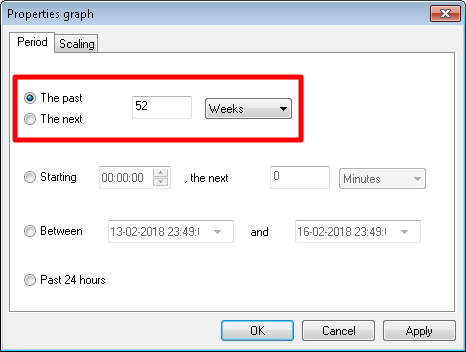

  2. Change the Period to the past 52 weeks.

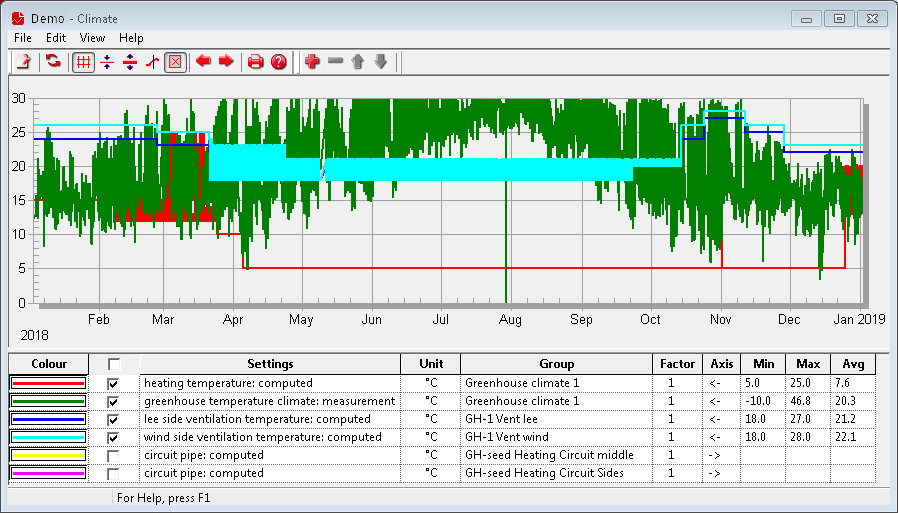

  3. The graph is showing the data of last year


  4. Click "Export data"

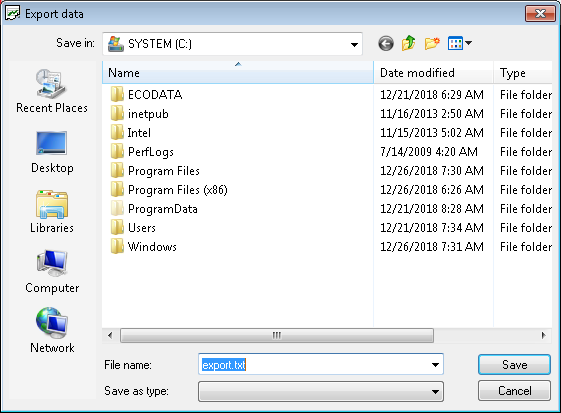

  5. The graph data is saved as a .txt file

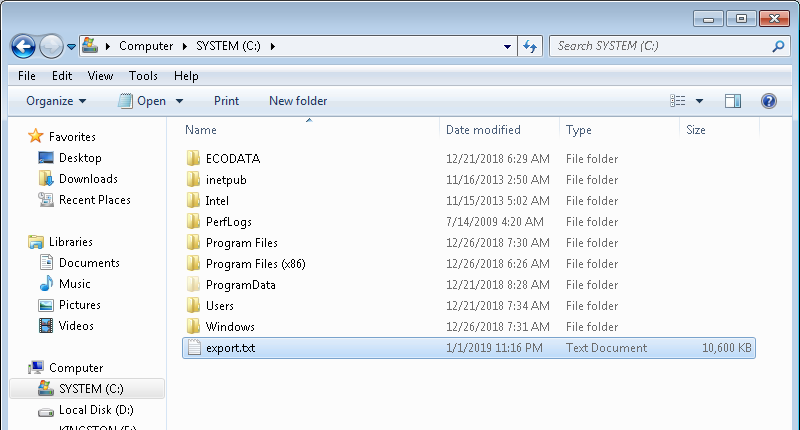

  6. The file "export.txt" is created

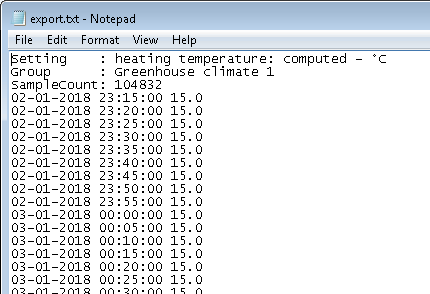

  7. Open the file with Notepad to see the 5 minute data of the graph
