How to mount Jumo EC sensors?

See below the general recommendations of Jumo.

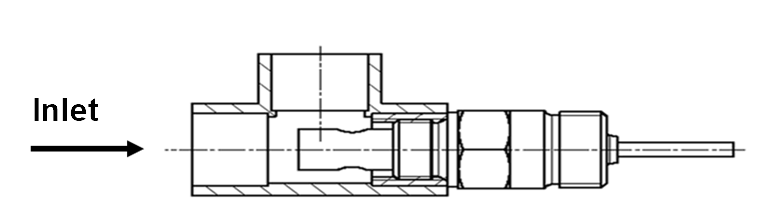

1. The ideal mounting:

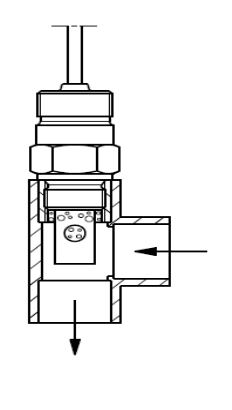

2. Avoid dead zones or places where air can accumulate:

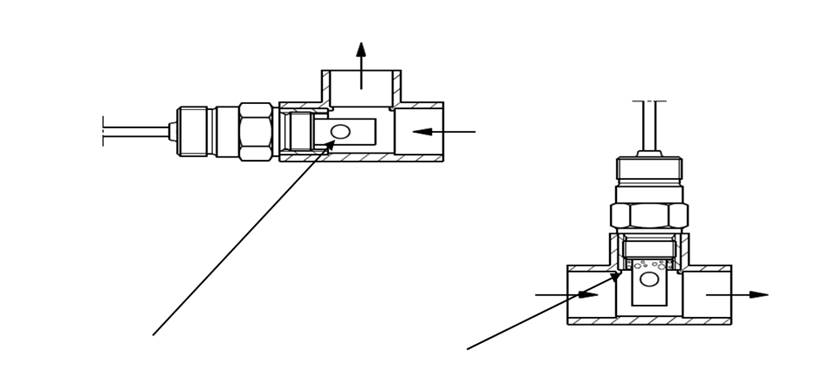

3. Avoid areas where air can remain. For example, at the end of a pipe:

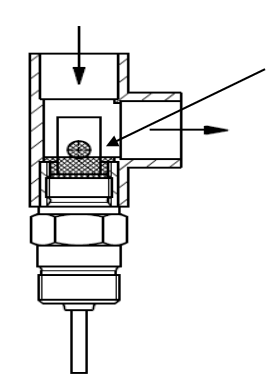

4. Avoid areas where dirt can remain:

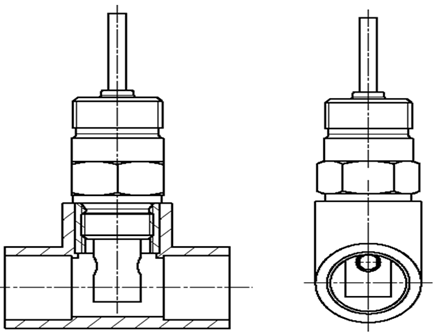

5. Mounting in a vertical pipe is not ideal.

It is possible, but pay attention:

- pipe must be full of liquid

- there must be no air bubbles between the electrodes

Practical example

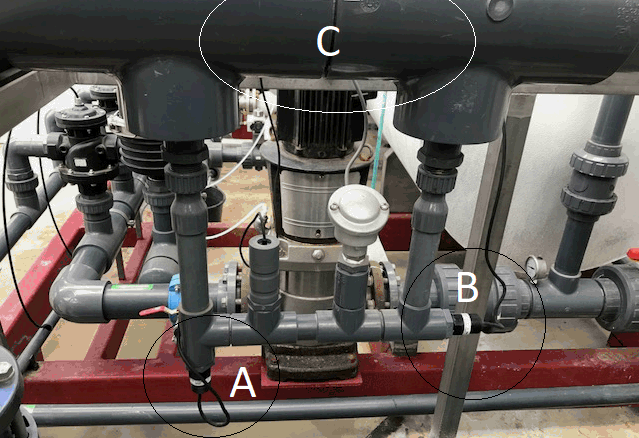

Line C is the pressure pipe. There is a narrowing so that there is flow over the pipe with measurements for EC, pH and temperature.

The flow goes from A to B. This is the most favorable when we look at the flow direction of the sensor.

If we look at sensor A then we would not advise this as this sensor could over time become full with dirt that settles in the T piece.

If sensor B is deep in the T-piece, it is the best position.

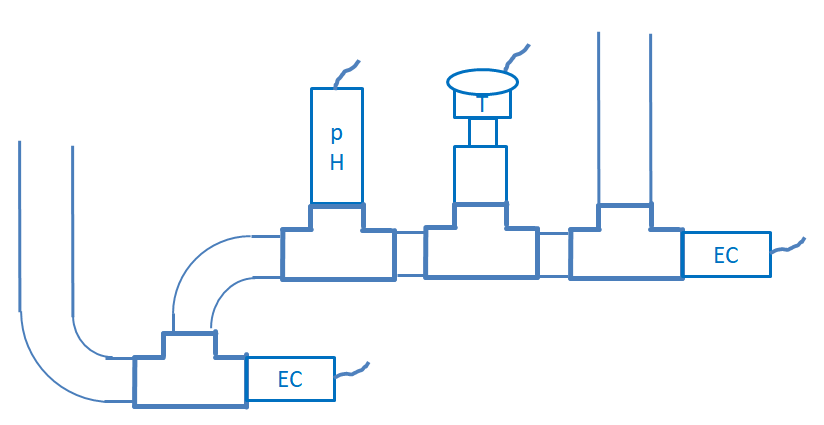

Better solution is: cascading:
