EN - How to work with +Active Air cooling

EN - How to work with +Active Air cooling

Question

How do I work with +Active Air cooling?

 Answer

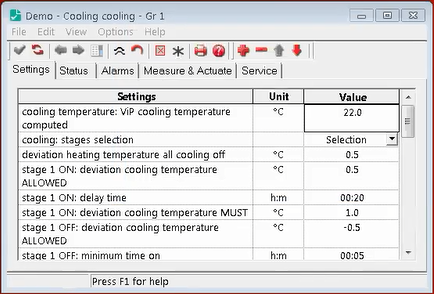

The pad wall can be controlled in 5 stages by the cooling program.

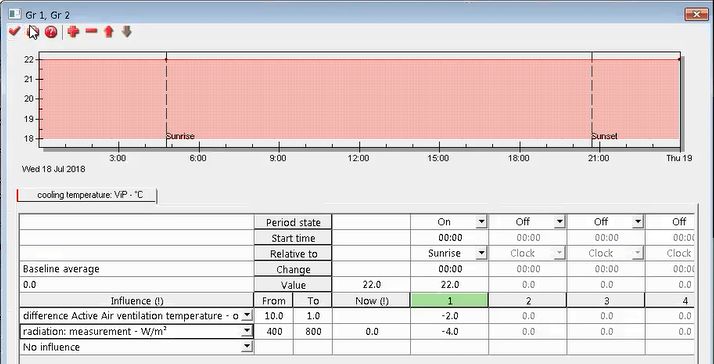

In the example above the cooling is starting when the greenhouse temperature is higher than 22 °C.
With the influence "difference Active Air ventilation temperature - outside temperature" the cooling is started earlier when it becomes warmer outside.
With the influence "radiation: measurement" the cooling is started earlier when it becomes sunny outside.
