Question

How do I work with +Active Air overpressure?

 Answer




The Active Air overpressure is used in the following situations:

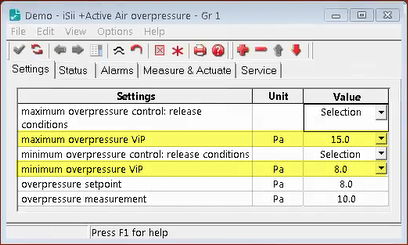

In these situations the maximum overpressure is 15 Pa (in practice between 10 and 15).


During recirculation a minimum overpressure of 8 Pa (in practice between 5 and 10).

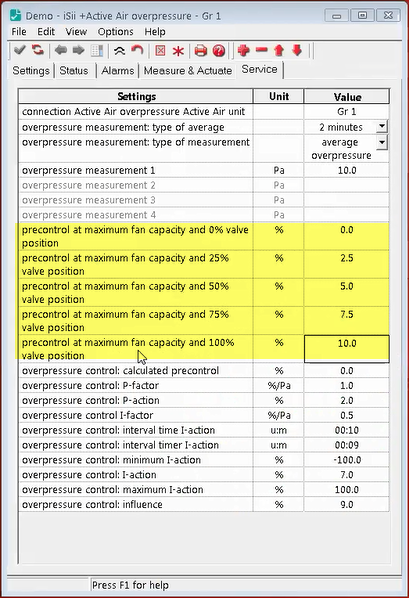

A precontrol depending on fan speed and outside air valve opening.

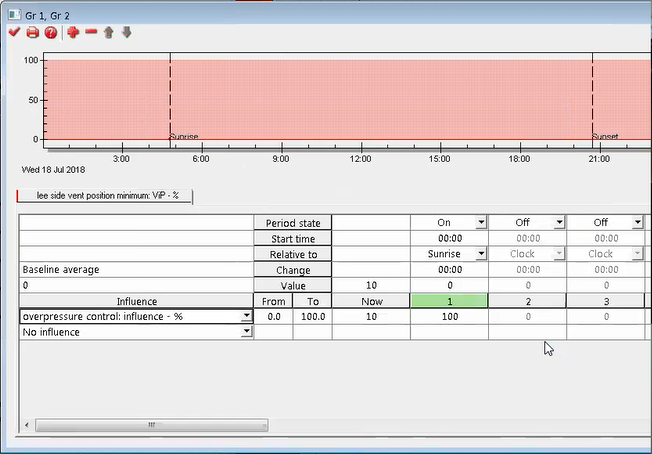

An "overpressure control: influence" is calculated which can be used to open the overpressure windows.

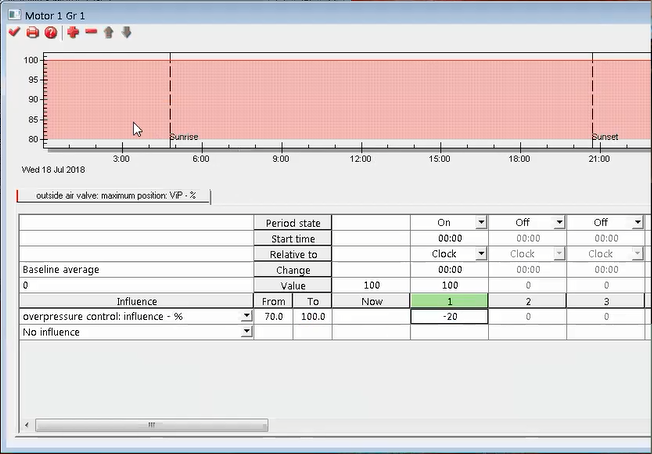

This influence can also be used to close the outside air valve.

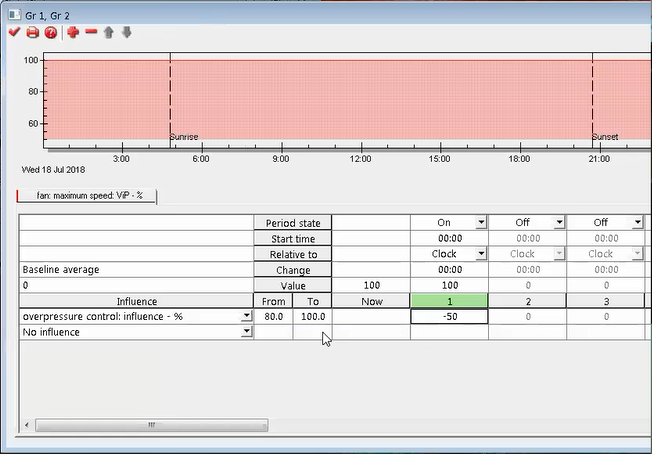

This influence can also be used to reduce the fan speed.
