EN - iSii compact: How to connect the Vent position time based ?

Question

How to connect the Vent position time based in iSii compact?

Answer

Layout control block - v1.5.0

What it does

• Realize the computed position. Depending on the wind direction this will be the lee side setpoint, the wind side setpoint or the average when the wind blows on the ridge.

• IO vent open and vent close

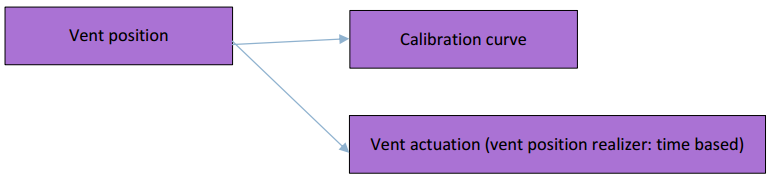

Couplings with other control blocks

Couple for each vent to actuate a Vent position. The number of vent positions is unlimited.

Tips for configuration

• Set the running time open and the running time close

• Set the start and the end wind direction for ventilation lee and wind side. Wind directions
  that are not used will be controlled as neutral side (average from lee and wind side).
• Correct if required the converter values.
