EN - How to add a new visualization (version 2.0)



Question

How to add a new visualization?

 Answer

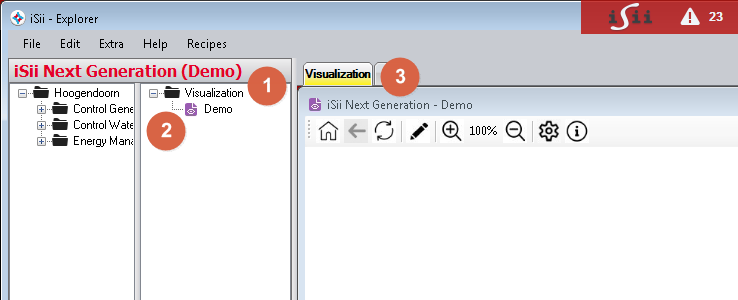

1. Create a folder "Visualization"

2. Add a new visualization and change the name to "Demo"

3. Create a worksheet "Visualization" and drag and drop the visualization Demo from the folder to the worksheet

4. In the top of the visualization, you will find a menu bar.

5. The meaning of the buttons in de menu bar:

button	meaning
	Jump to home page
	Navigate back to the previous visualization
	Refresh values With LeftControl while clicking, the whole visualization is reloaded
	Switch to edit/design mode
	Zoom in
	Zoom out
	Settings of the visualization
	Information about the version number, features and hotkeys
