EN - How to edit/design a visualization (version 2.0)



Question

How to edit/design a visualization?

 Answer

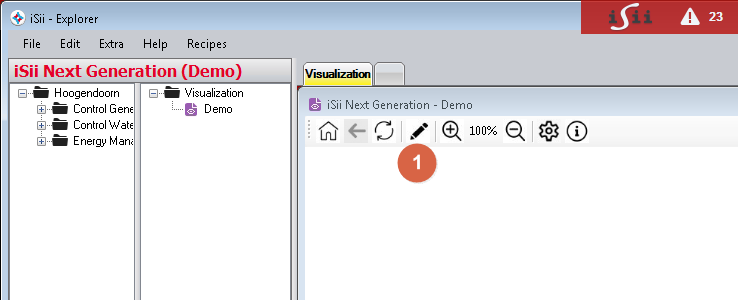

1. Click the button "Switch to edit/design mode"

2. The menu bar in the top of the visualization will change.

3. The meaning of the buttons in de menu bar:

button	meaning
	Undo last action
	Switch to view mode, i.e. run visualization
	Save visualization
	Select background image from disk
	Add new group to visualization
	Add new setting (setpoint) to a visualization Add new setting (animated symbol) to a visualization How to make your visualization interactive
	Add new button to a visualisation How to make your visualization interactive
	Add new text label to a visualization How to make your visualization interactive
	Add new clip art to a visualization How to make your visualization interactive
	Align selected objects left with the one with the darkest border
	Align selected objects right with the one with the darkest border
	Align selected objects top with the one with the darkest border
	Align selected objects bottom with the one with the darkest border
	Distribute selected objects with equal distance between top sides
	Distribute selected objects with equal distance between left sides
	Size selected objects width with the one with the darkest border
	Size selected objects height with the one with the darkest border
	Rotate selected object 90 degrees anti-clockwise
	Rotate selected object 90 degrees clockwise
	Flip selected object horizontally
	Flip selected object vertically
	Make selected objects the same style
	Set editor in non-transparent objects mode
	Set editor in flat objects mode
	Selection mode for selection objects within a rectangle
	Copy selected objects to clipboard
	Past objects from clipboard to visualization
	Delete selected objects
	Zoom in
	Zoom out
	Hide background image
	Settings of the visualization
	Information about the version number, features and hotkeys
