EN - How to attach a graph to a setting (version 2.0)
Question
How to attach a graph to a setting?
Answer

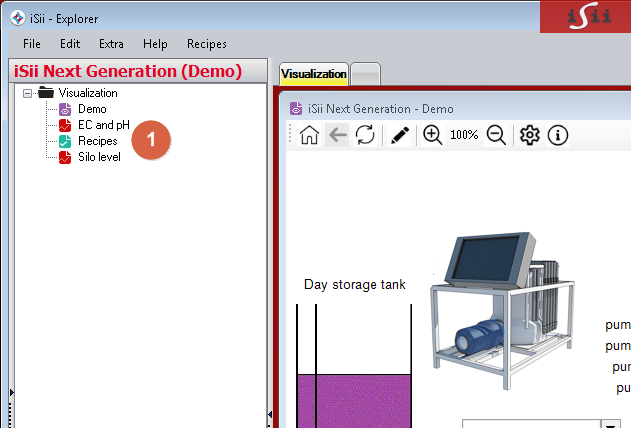

1. Create some graphs in the directory Visualization

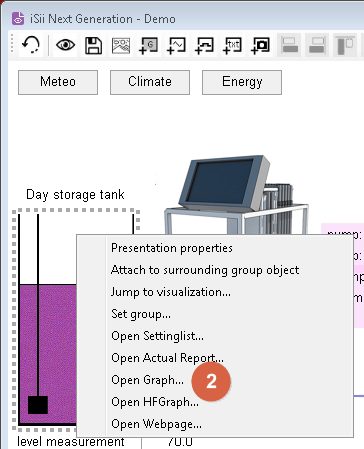

2. Right-click on the setting (in this case an animated symbol) and choose "Open Graph..."

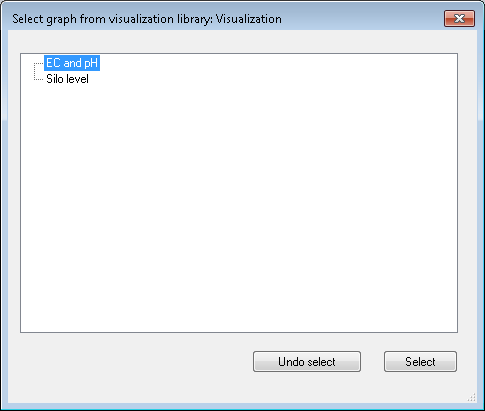

3. Choose the right graph and click "Select"
4. Hover your mouse over the clip art and you will see that the graph has been attached
5. Switch to view mode. Hover your mouse over the animated symbol. Your mouse is changing to a hand.

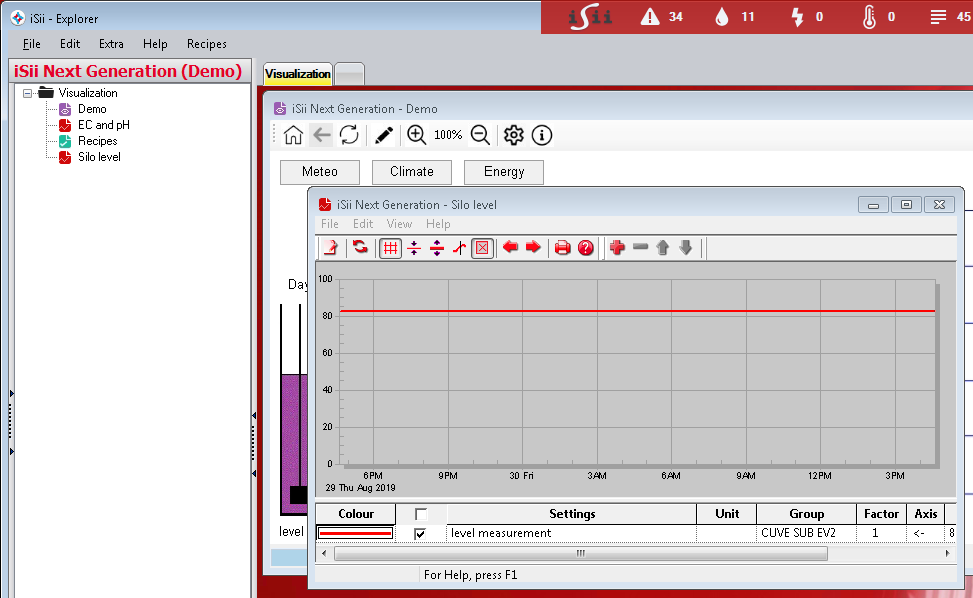

Click on the animated symbol and the graph will appear.
