EN - How to connect a Netafim unit

EN - How to connect a Netafim unit


This article is only for Hoogendoorn Partners

Question

How to connect a Netafim unit?



 Answer

Please read te attached product sheet, installation manual and user manual.

  1. You need a Datapoint with a normal C150 bus-coupler (so you don't need a C150e bus-coupler).
    The Datapoint must have the following modules:
    - 3 x Din
    - 6 x Aout
    - 4 x Dout

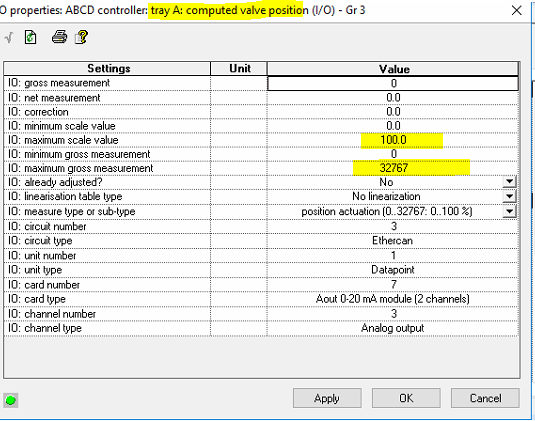

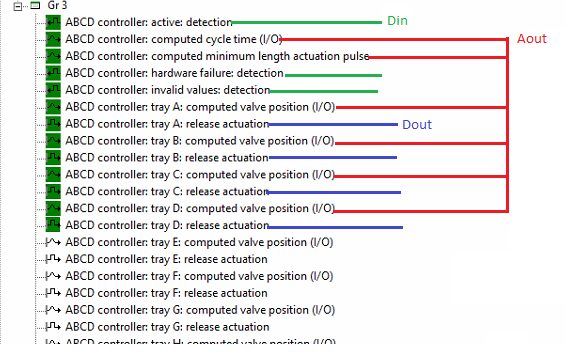

  2. Then make the following connections in Connect IO:



  3. You don”t have to connect hardware to “ ABCD controller: computed cycle time” and “ ABCD controller: computed minimum length actuation pulse”

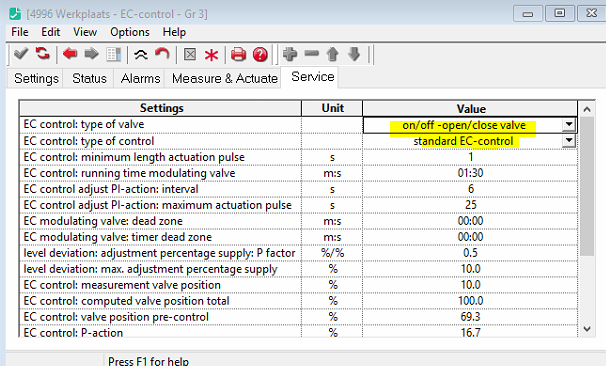

  4. Use as type of valve "on/off - open close valve"

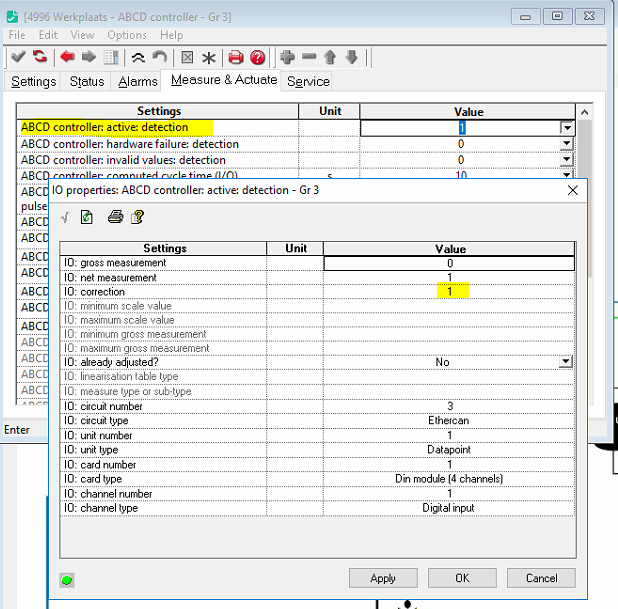

  5. Enter a correction value of 1 in the setting "ABCD controller: active: detection"

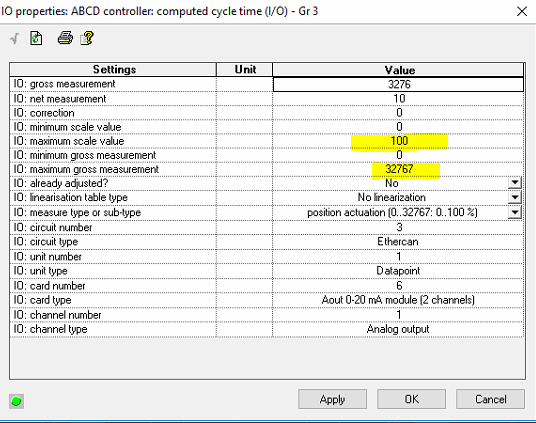

  6. Enter the settings of the cycle time



  7. The settings of the 4 trays



  8. For the pH you need extra 2 x Dout modules and a 530605 Ramp generator PR2281
