EN - iSii compact: How to connect Climate location ?

Question

How to connect Climate location?

Answer

Layout control block - v1.5.0

What it does

• Climate location presents a physical location in the greenhouse. It’s a technical object to
  connect all kind of Climate controls: Greenhouse climate, heating, ventilation, curtain…. It is
  used by the control to find the right ventilation, heating, aspirator… instance when information is exchanged between these instances.


Coupling from Climate locations to Greenhouse climate

Couple a Climate location to Greenhouse climate

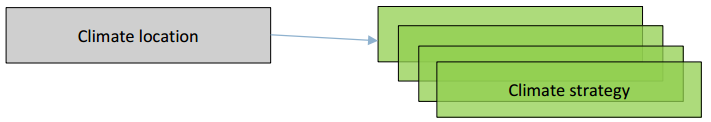

Coupling of the Climate controls

Couple all climate controls of that Greenhouse climate to the Climate location: all Climate strategies,
the Ventilation strategy…

Coupling of the Aspirator
We do not need to couple the aspirator. The aspirator is part of the Greenhouse climate with alarms.
Climate location of the Compact will automatically find this aspirator after a restart of all controls.
