EN - iSii compact: How to connect Pad and Fan ?

Question

How to connect Pad and Fan in iSii compact?

Answer

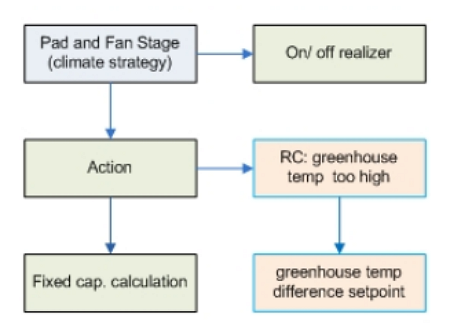

Layout control block

What it does

• Offers setpoints and conditions to switch on Pad or Fan depending on greenhouse temperature.

• IO on.



Couplings with other control blocks
