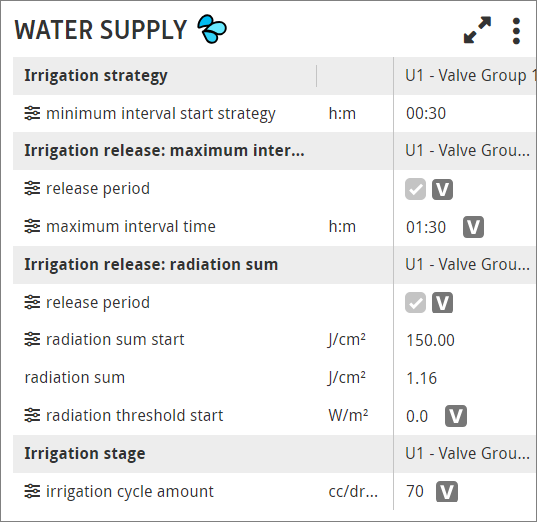

IIVO Water supply stategy

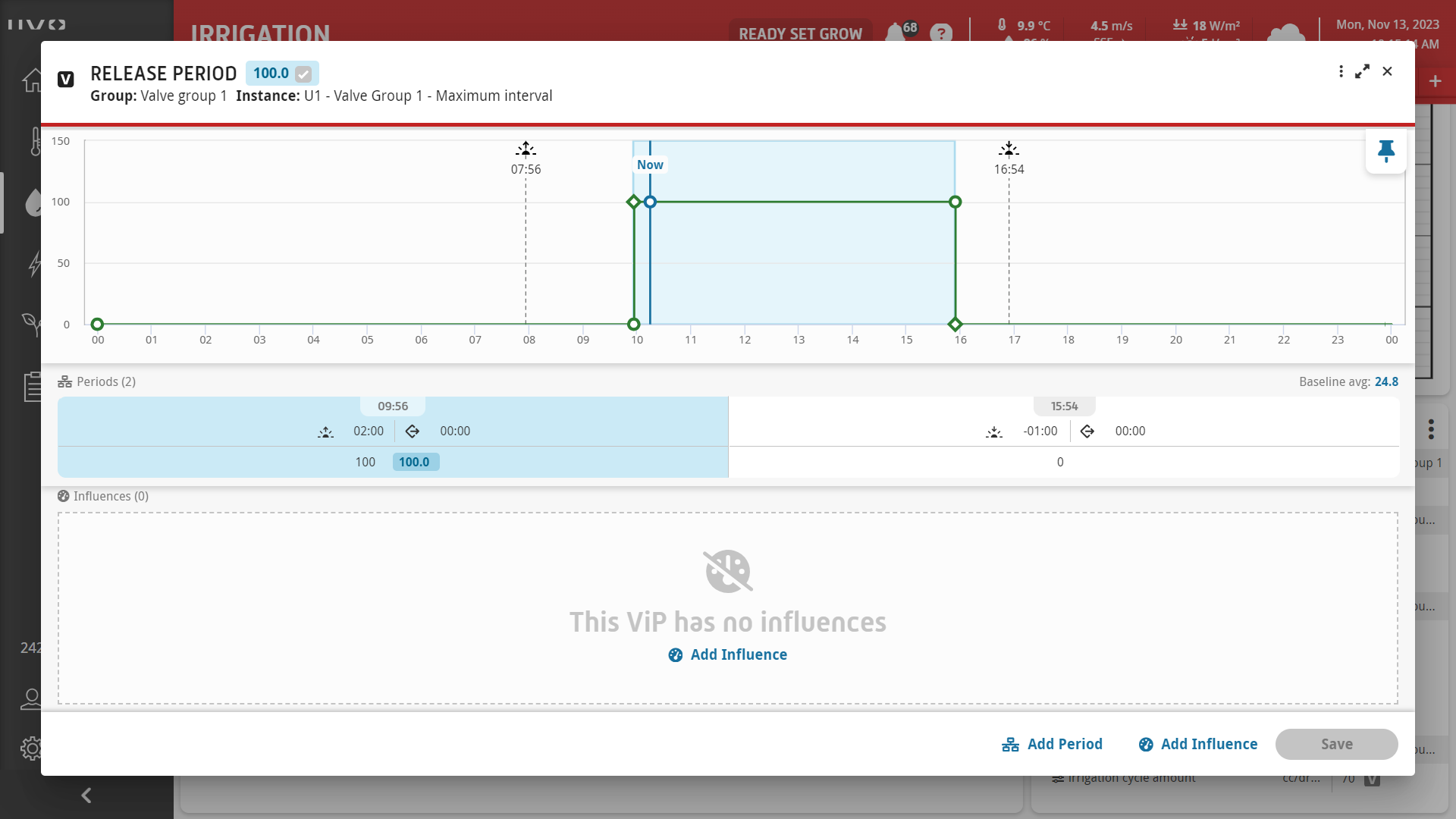

Irrigation based on time is allowed between 10:00 and 16:00

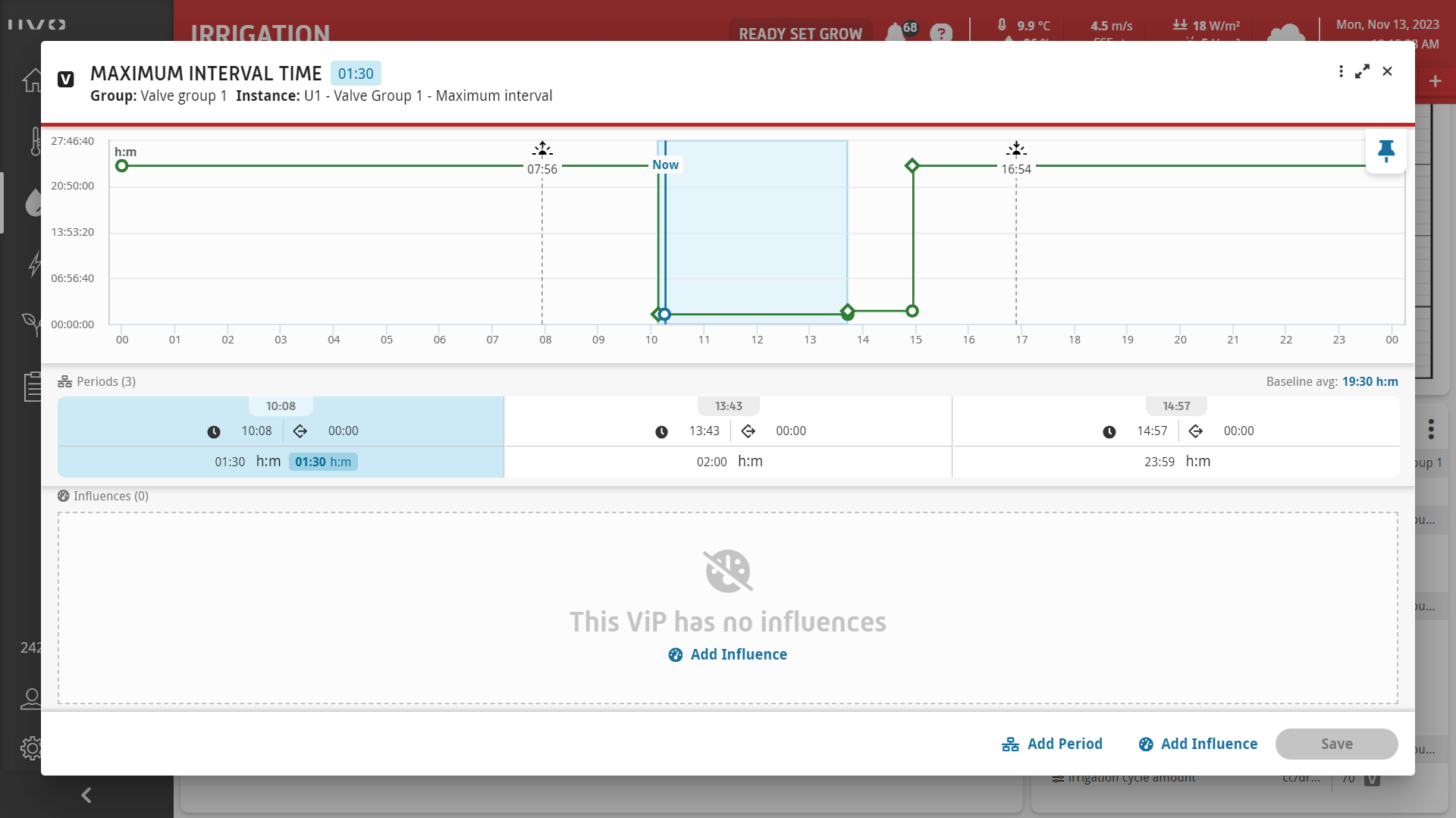

From 10:08 to 13:43, the maximum time between drip rounds is 01:30
From 13:43 to 14:57, the maximum time between drip rounds is 02:00

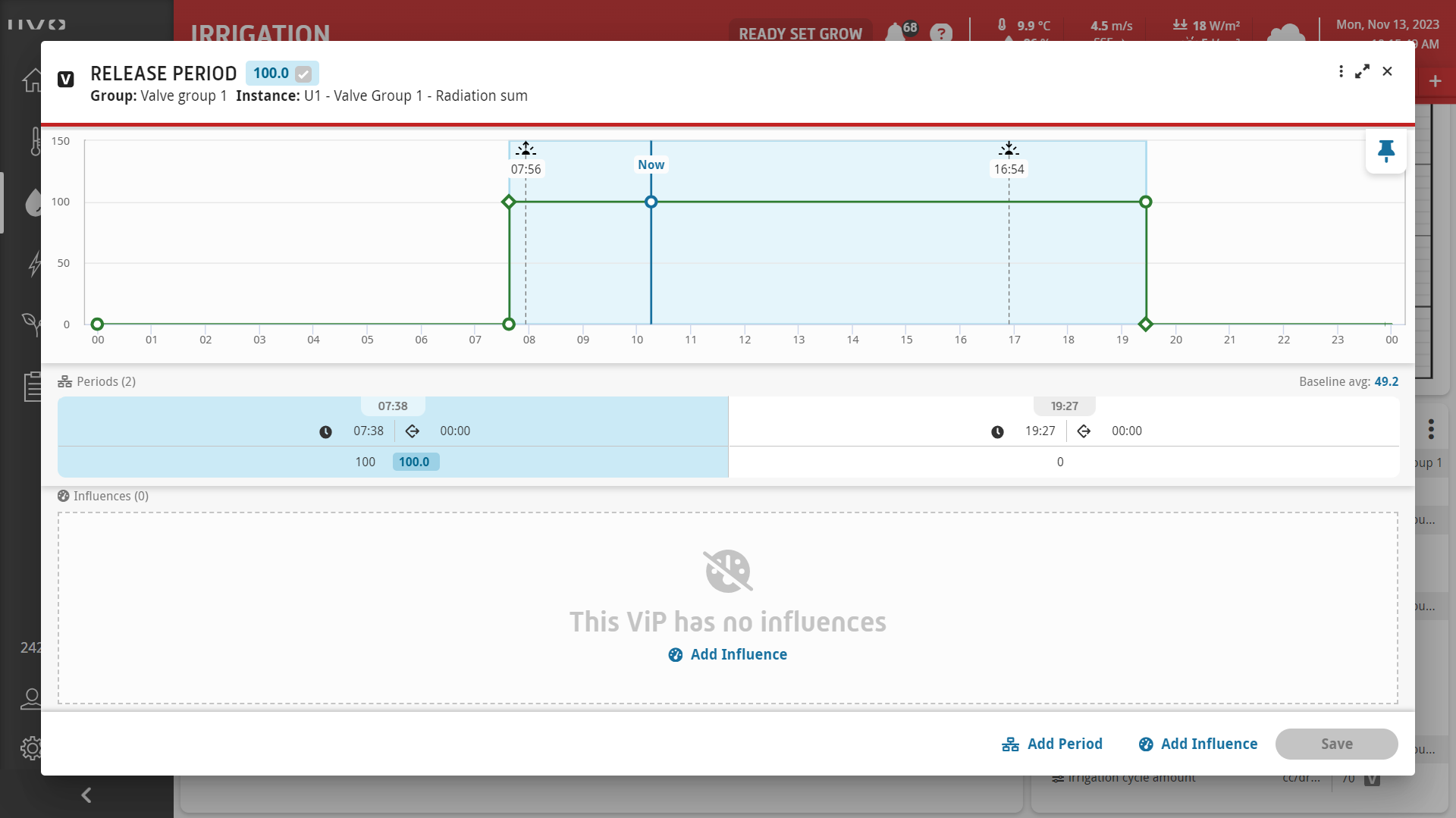

Irrigation based on radiation is allowed between 07:38 and 19:27

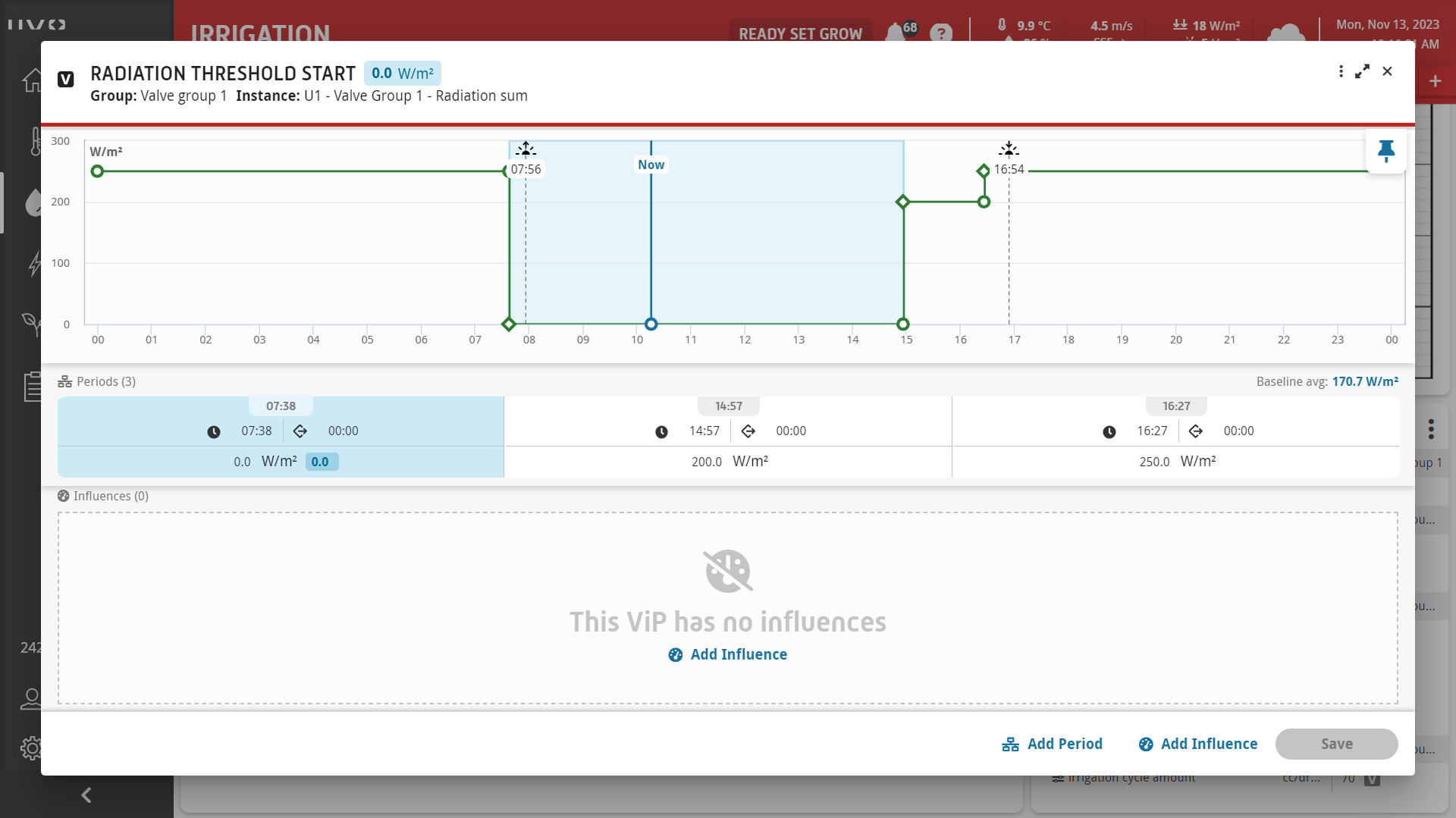

From 07:38 to 14:57, the radiation threshold is 0 W/m2
From 14:57 to 16:27, the radiation threshold is 200 W/m2
From 16:27 to 07:38, the radiation threshold is 250 W/m2

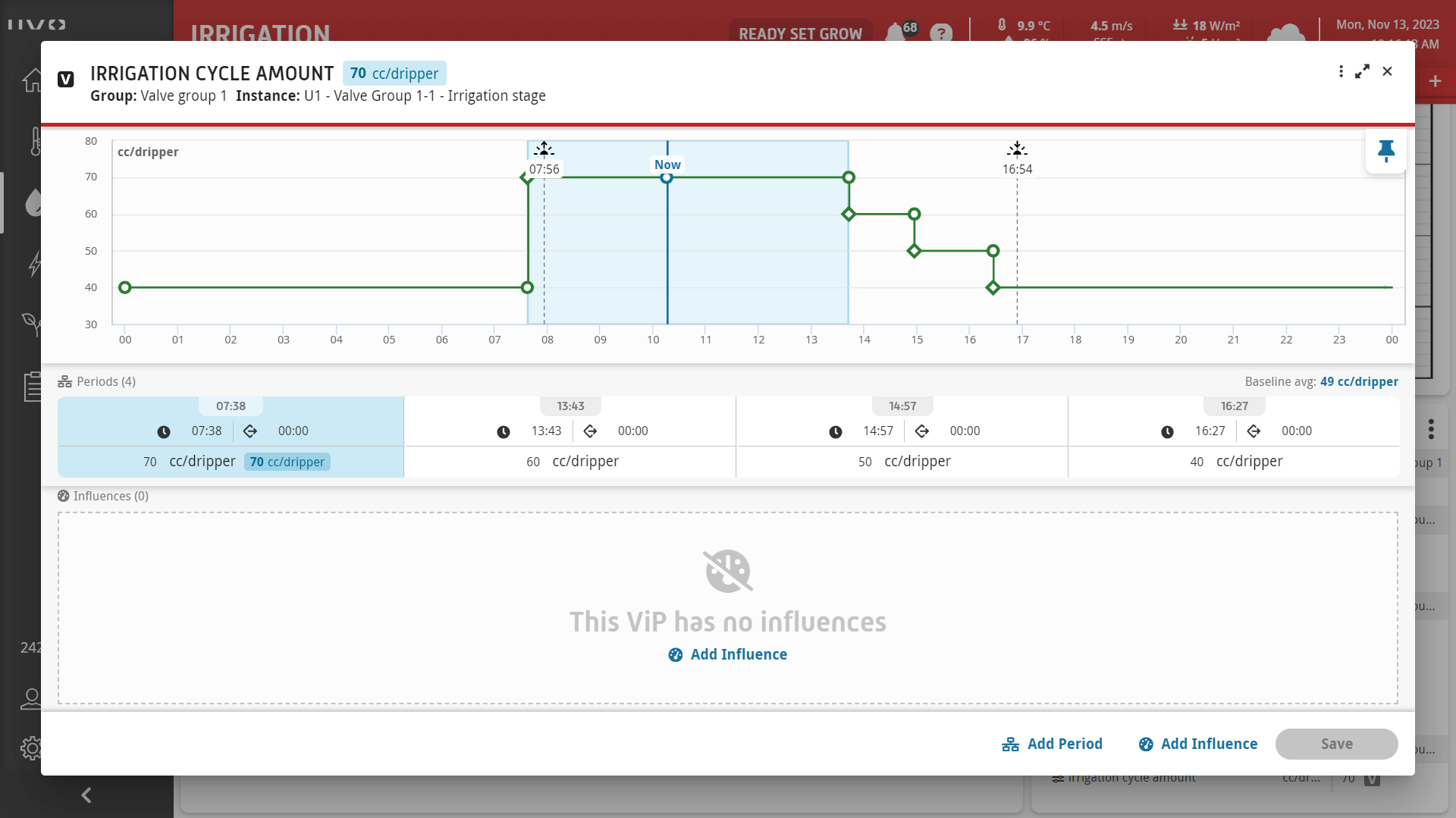

From 07:38 to 13:43, the cycle amount is 70 cc/dripper
From 13:43 to 14:57, the cycle amount is 60 cc/dripper
From 14:57 to 16:27, the cycle amount is 50 cc/dripper
From 16:27 to 07:38, the cycle amount is 40 cc/dripper
